KIO3700 Rugged Keyboard and Mouse
KIO3700 Rugged Keyboards

KIO3700 Series

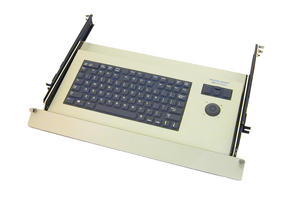

KIO3700 Series - NEMA 4 (IP66) Rack Mount Keyboards w/ OrbitalMouse®:

The KIO3700 Series are rugged, NEMA 4 (IP66) sealed industrial keyboards with full 101/104 key functionality. These sealed keyboards include 12 function keys and are combined with CTI's OrbitalMouse® button style mouse pointer.
CTI's OrbitalMouse® is a sealed NEMA 4 (IP66), drift-free, button style industrial pointer, and is molded in silicone rubber; making it more user friendly and durable than a touchpad.

These ruggedized keyboards use CTI's advanced design for sealing and reliability. They are molded of silicone rubber and have 2mm travel with excellent tactile feel. Gold over nickel contacts combined with superior sealing (waterproof) assure users of years of reliable operation. The KIO3700 Series are packaged in heavy gauge anodized aluminum with a 1U panel height, and includes CTI's patented, ergonomic folding door hand rest feature. Sliding rails are rated at 80 lbs. per side and lock in the extended position. All installation hardware is included. Various options are available to meet your application requirements.

KIO3700 Industrial Keyboards Technical Drawing (PDF)
Speed Control for OrbitalMouse® Mouse Cursors (PDF)
USB Bulkhead Panel Cable (PDF)
How to select an Industrial Rugged Keyboard
